Outlet Splitter for Power Bricks: Stop Blocking Adjacent Outlets
Outlet Splitter for Power Bricks: Stop Blocking Adjacent Outlets
Direct answer: The best outlet splitter for power bricks is not necessarily the model with the highest outlet count. Look for outlets facing different directions, enough clearance for the widest adapters, a low-profile wall connection, and a layout that keeps every cable visible. Orientation often creates more usable space than adding another crowded row of sockets.
Power bricks for routers, mini PCs, smart-home hubs, speakers, monitors, and chargers vary widely in shape. A single oversized adapter can cover the outlet above, below, or beside it, reducing the practical capacity of a conventional strip.
Why power bricks block neighboring outlets
An AC receptacle is small, but many power supplies are not. Some bricks extend upward, some hang downward, and others project sideways. Their cable exits can also collide with the next adapter. The result is an outlet arrangement that looks sufficient on paper but fails when real devices are connected.
Before buying an outlet splitter, place every adapter on a table and note four measurements: width, height, depth, and cable-exit direction. Include the plug blades in your sketch. Two adapters with similar wattage can require completely different space.
Evaluate outlet orientation before outlet quantity
| Layout | Advantage | Watch for |
|---|---|---|
| Front-facing row | Easy to see and label | Wide bricks may cover neighboring sockets |
| Side-facing outlets | Adapters can project in separate directions | Furniture and wall clearance on each side |
| Three-sided block | Distributes large plugs around the body | Cable routes can overlap if unplanned |
| USB ports plus AC | Small devices may not need separate wall adapters | Shared USB output and connector compatibility |
A side-access layout is especially useful when several adapters are wider than a standard plug. It gives each brick a different direction instead of forcing all of them into one plane.
Build a paper template for your adapters
Trace each power brick on paper, mark the plug location, and cut out the shapes. Arrange the templates around a drawing of the splitter. This simple test answers questions that product outlet counts cannot:
- Will a brick cover a USB port?
- Does the cable exit point toward the wall or furniture?
- Can the adapter sit without twisting its blades?
- Will two cords cross tightly at the same corner?
- Can you remove one adapter without unplugging the others?
If possible, leave a little space between bricks for easier inspection and removal. Do not force an adapter into a receptacle or use its weight to hold another plug in place.
Check wall and furniture clearance
A splitter can solve adapter overlap while creating a new problem if it pushes a desk, shelf, or cabinet away from the wall. Measure the depth from the wall plate to the front of the deepest connected adapter. Then add the cord bend and a small inspection gap.
Side-facing outlets can reduce forward projection because plugs leave toward the left and right. They are useful behind a media console, beside a desk, or near a network shelf where front-to-back depth is limited. Keep the splitter and plugs out of any pinch point.

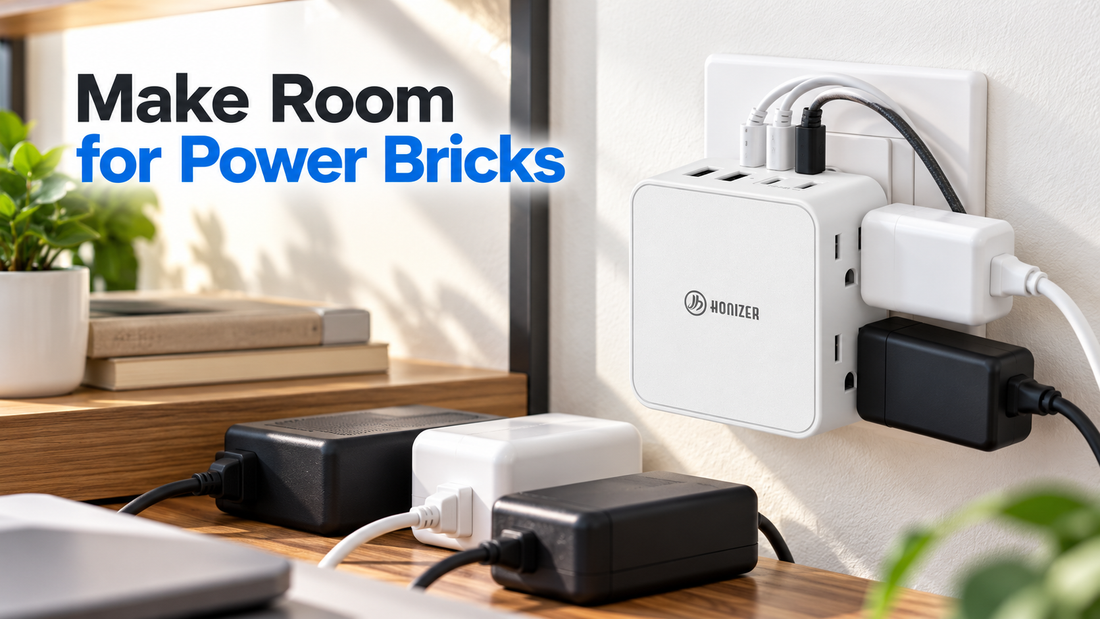

A ZeroEdge option for side-access power
HONIZER’s ZeroEdge flat outlet extender with side-access AC outlets is designed for tight wall spaces and bulky plugs. Its current Shopify listing shows four AC outlets around the sides, two USB-A ports, two USB-C ports, one USB-C port listed up to 20W, a 1.3-inch profile, a 15A/1875W rating, and four cable clips.
This arrangement can separate power bricks by direction while allowing compatible low-power USB devices to connect without their own AC adapter. Confirm the current instructions, combined rating, USB-output behavior, and device requirements before use.
Fewer AC adapters can improve the layout
Some phones, earbuds, watches, and small accessories can use integrated USB ports instead of separate charging bricks. Removing even one or two AC adapters may free the side outlets for equipment that truly needs its own power supply.
Do not assume every USB port supports every device at its maximum charging speed. Match the cable connector, protocol, and power requirement. If a device requires its supplied AC adapter, keep using it.
Plan the total load, not only physical fit
Making every adapter physically fit does not increase the power available from the wall. Read the splitter rating, every device label, and any instructions about direct wall connection. Add the devices expected to operate simultaneously. High-draw heating or motor-driven appliances should follow their manufacturers’ guidance and may require a direct wall outlet.
Avoid daisy-chaining a second power strip or extension device into the splitter. If the setup needs more connections than one properly rated product can provide, reconsider the device grouping or ask a qualified electrician about additional receptacles.
Organize power bricks for easier maintenance
- Label both ends. Mark each brick and its device before plugging in.
- Put rarely removed bricks on the least-accessible sides. Reserve easy positions for devices you service often.
- Route cables by direction. Keep left-side cords left and right-side cords right.
- Support heavy adapters. Do not let a brick or cable pull the splitter away from the wall.
- Leave ventilation space. Do not bury power supplies under paper, fabric, or other equipment.
- Inspect periodically. Look for loose connections, damage, discoloration, or unusual warmth.
When a conventional power strip may be better
Choose a traditional strip when most plugs are narrow, all cables need to run in one direction, you want the connection block away from the wall, or the wall area lacks side clearance. Choose a side-access splitter when adapter width and forward depth are the main problems and the wall location remains easy to inspect.
Conclusion
An outlet splitter for power bricks should be judged by usable connections, not printed outlet count. Measure every adapter, compare plug directions, check furniture clearance, and plan the combined load. Side-access outlets can turn blocked sockets into practical connections without pretending that a single wall outlet has gained more capacity.
FAQ
Why does one power brick block two outlets?
The adapter body is wider or taller than the spacing between receptacles, so it physically overlaps the neighboring socket.
Do sideways outlets help bulky adapters fit?
Often, because they let adapters project in different directions. You still need enough clearance beside the wall and between cable exits.
Can I plug a power strip into an outlet splitter?
Avoid daisy-chaining extension devices. Use one product with the connection layout and rating your setup requires.
Do USB ports replace every charging brick?
No. They can replace compatible adapters only when the connector, protocol, and available output meet the device requirements.
Does an outlet splitter provide more electrical capacity?
No. It adds accessible connection points, while the wall outlet and circuit limits remain unchanged.
